13.1  Serial Pi Zero  and

         G3VPX piWeb CAT  PCB - A RS232 and CI-V interface for the RPi.

(Not needed with USB connection to radio)

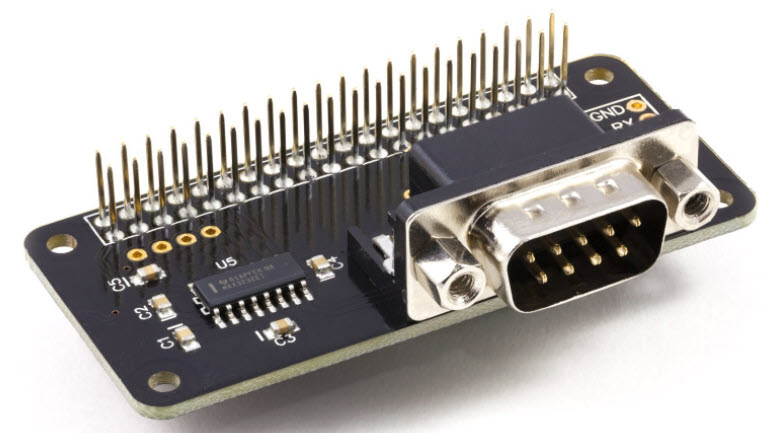

Serial Pi Zero

For RS232 CAT connections the easiest option is to purchase a Serial Pi Zero board.

This is the size of the small Pi Zero computer but fit any RPi GPio connection.

It uses the serial port connections on GPIO pins 8 and 10 to through an RS232 driver

device. The cost at the time of my purchase was £8.49.


The RPi 3 has two serial ports, one of which is high quality and with high baudrate capability.

My initial serial port development was with RPi3 computers on a commercial project.

The fast serial port is switched to GPIO pins 8 and 10.

The RPi4 has five fast serial ports  . but I chose not to use the four new additions.

Reason: (i) The RPi 3 arrangement is just as effective (ii) the Serial Pi zero uses the port on
pins 8 and 10 !! (iii) The information on RPi 4 ports became available some time after the RPi 4.

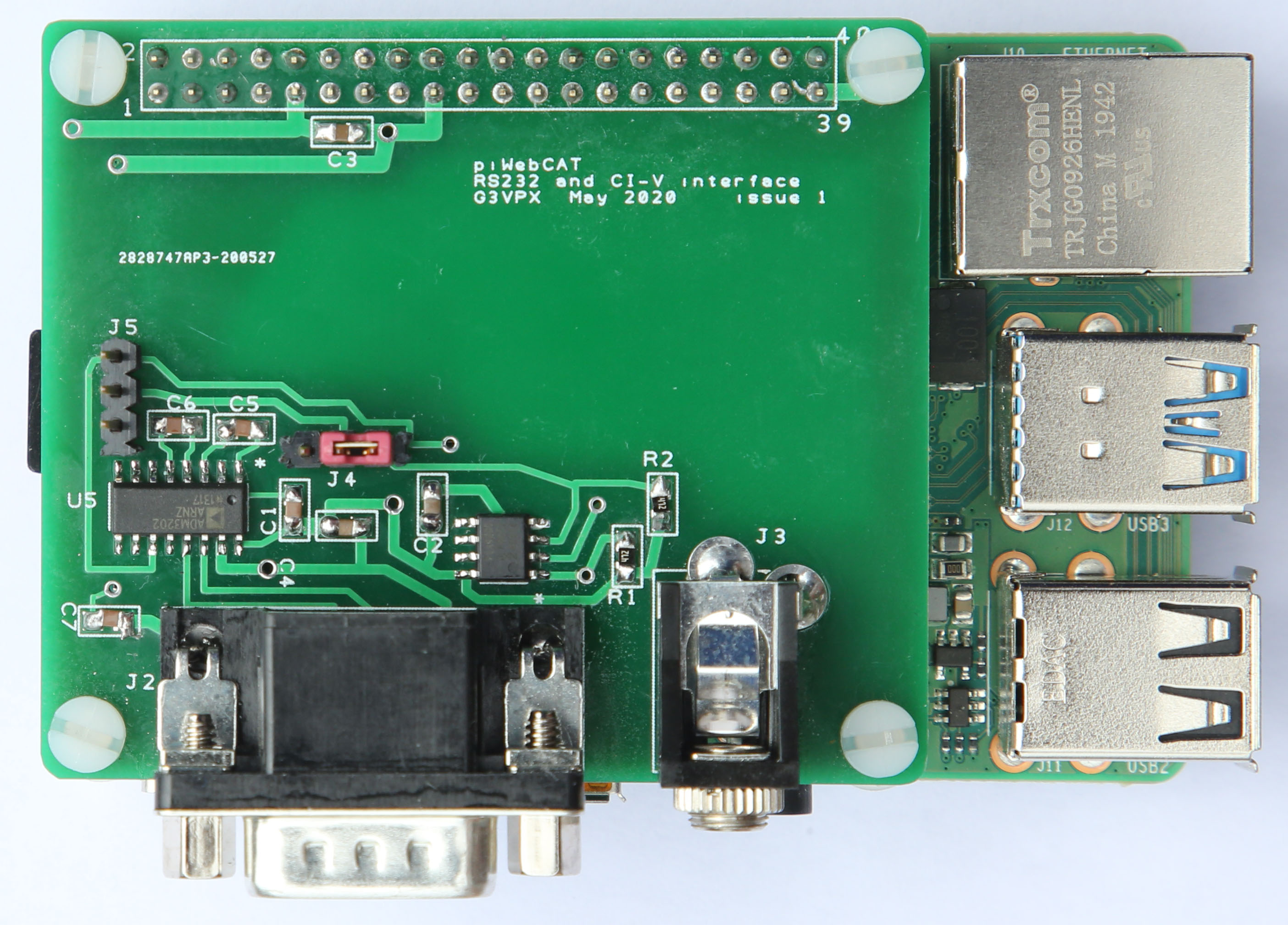

G3VPX piWebCAT PCB

This is a commercially manufactured PCB with drivers and interface devices for both
RS232 and Icom CI_V  (3.5 mm mono jack socket).   J4 -  RS232 left  CI-V right (labeling missed!)

It has been made the full width of the RPi to bring the connectors to the board edge and thereby to
the side of an enclosing box.  I have left a large free area on the board (with no ground plane) so that
it could be used for 'breadboarding' of new circuit ideas.





G3VPX piWEbCAT PCB


The RS232 driver is a ADM3202 device (as used by Yaesu in the FTdx101D)

The CI-V driver is one half of a NXP PCA9600 device.
Its intended use is as a dual I2C line driver for I2C communication via standard CAT5
LAN cable. It separates each bidirectional I2C line (ie; SCL and SDA)  into two separate lines  - one Rx and one Tx  - each to a CAT5 pair.
I use it in reverse to combine GPIO serial Rx and Tx lines into a single CI_V line.


Both buffers of the pairs have open drain outputs and so need pull up resistors.
The Tx buffer is the lower one in the above image. Its 'logic low' pull down voltage is  0.76V max. which

is not low enough to trigger as logic low by the Rx buffer. This means that the outgoing negative going

pulses do not simultaneously come back on the Rx line.

This 0.76v low logic level works fine with my IC7000.
Examination of the IC7000 interface circuit confirms that it should be ok.

I checked the CI_V interface of a current Icom radio and it is almost identical to that on the 15yr old IC7000.


This device removes the problem of outgoing Tx pulses appearing at the Rx input on the processor.
Therefore the RPi serial does not have to deal with such unwanted input  .... and so doesn't do so.

This concurrent return of transmitted serial data is referred to as CI-V echo.
Hamlib rigctl operates with or without echo and so there is no problem.


piWebCAT without Hamlib does not tolerate the echo.
This is not a problem using the piWebCAT PCB.
However it  would be a problem using a Serial piZero RS232 card with the now obsolete RS232 <> CI_V
interface from Icom.

It is not an issue with USB connection.
(I have not run piWebCAT with Icom USB. I don't anticipate a problem  ... feedback please!)


I can supply the bare piWebCAT PCB for £4 including P&P.


 See Section 14.2  Support. Supply of SD card &PCB


(An initial order of 100 PCBs from JFCPCB, China arrived 8th June 2020)
